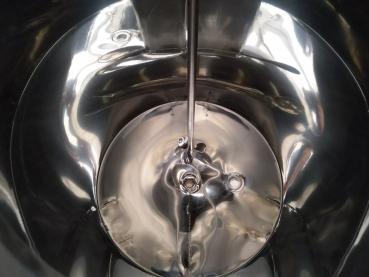

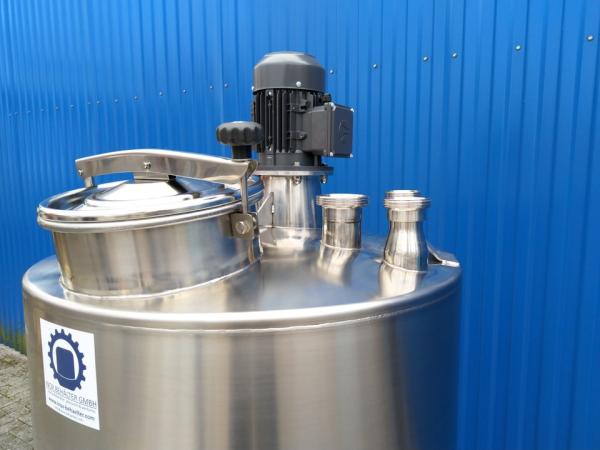

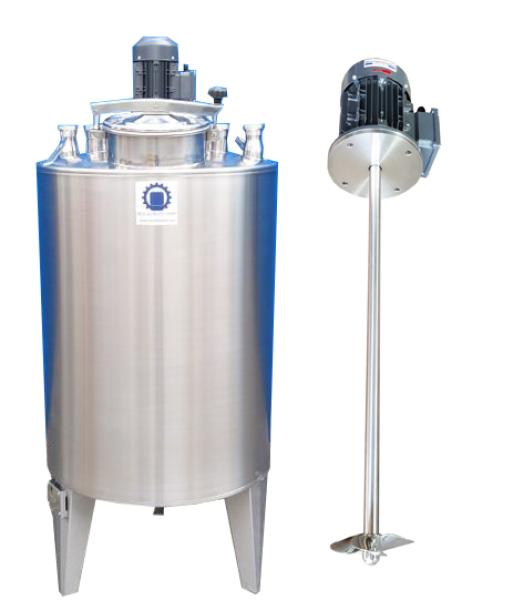

Name: 522L stainless steel agitator vessel
SKU: STOC500RWP_1
Price: 3467.29 GBP
Availability: InStock

Main page » 522L stainless steel agitator vessel

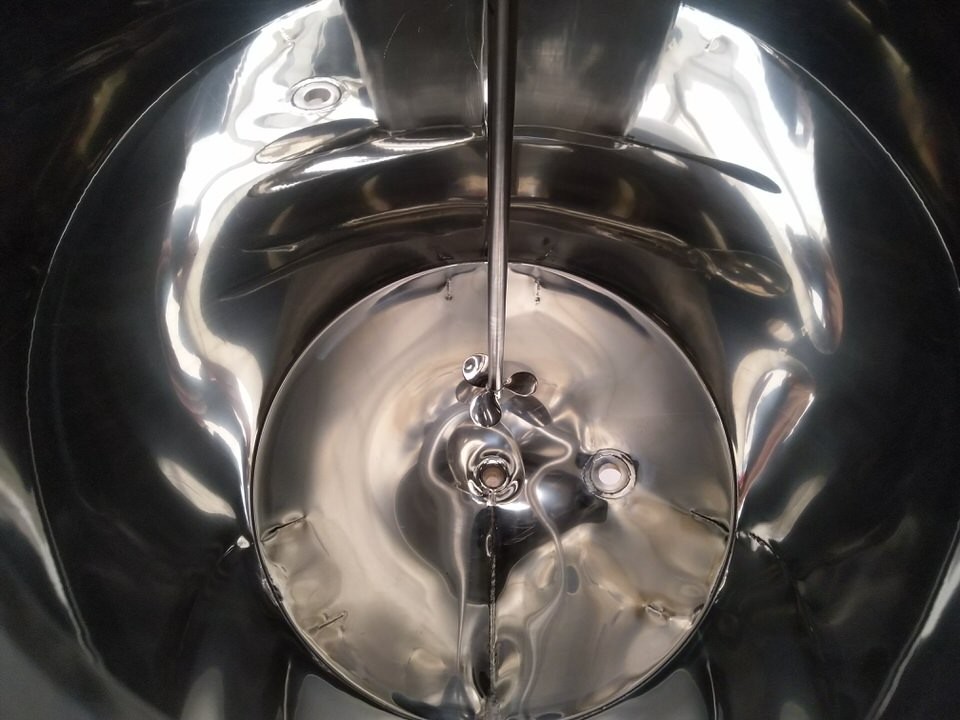

522L stainless steel agitator vessel

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	790mm
Outer diamater	793mm
Cylindrical height	1000mm
Overall height	1655mm
Stand feet height	400mm

Item number	STOC500RWP_1
Item type	Factory new storage vessel

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

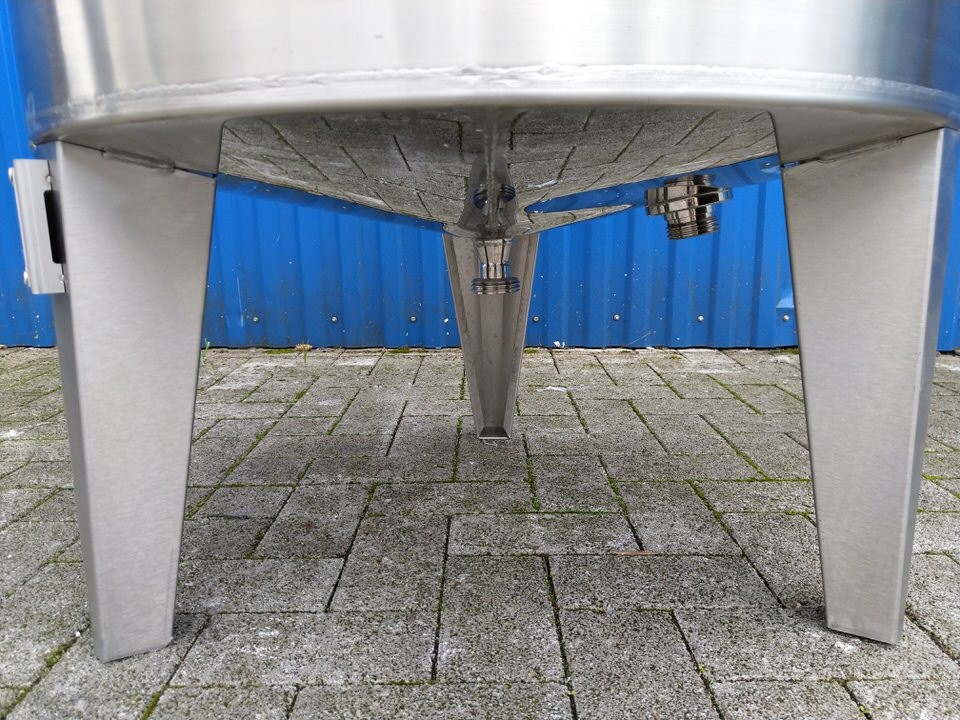

Construction type	Standing on feet
Number of fixations	3 feet
Material feet/castors	Stainless steel AISI304

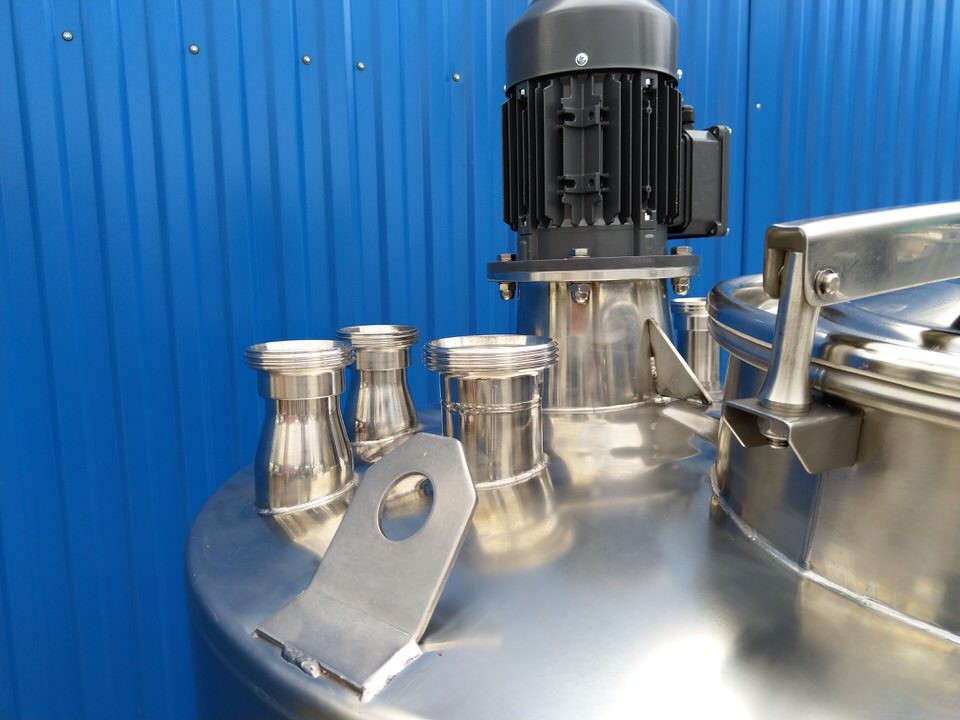

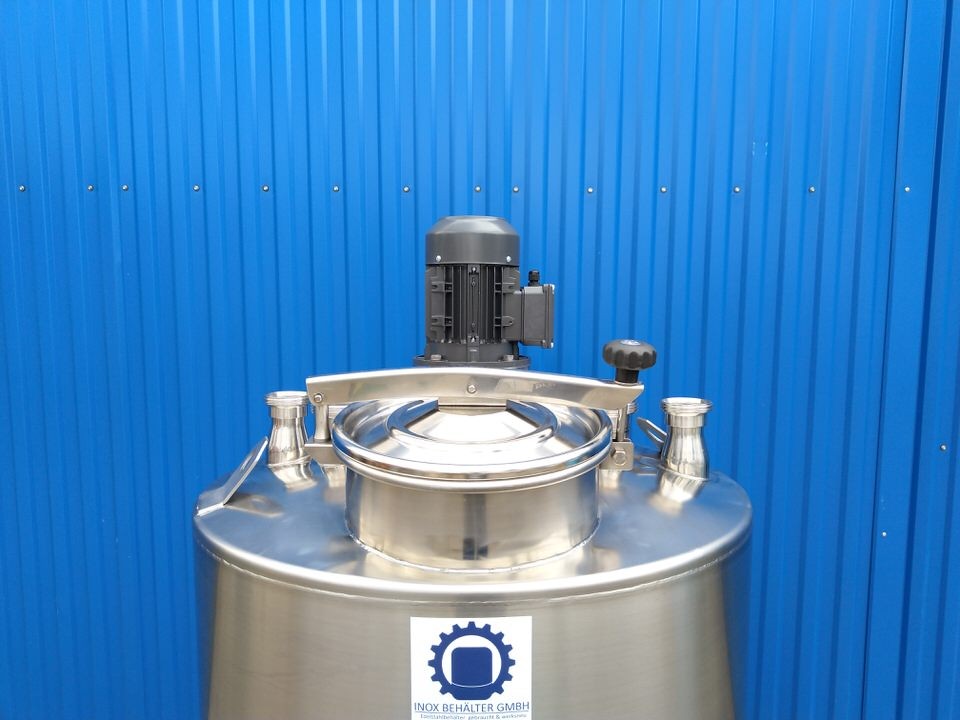

Extras	Dome cover Ø 300mm, vent valve, DN50 DIN11851 spigot on top, DN25 DIN11851 outlet

Design	Single-jacket
Isolated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	No
Outlet	DN50 DIN11851
Outlet valve	Ball valve
