Name: 734L Stainless steel vessel
SKU: MTL750RW
Price: 2358.75 GBP
Availability: InStock

Main page » 734L Stainless steel vessel

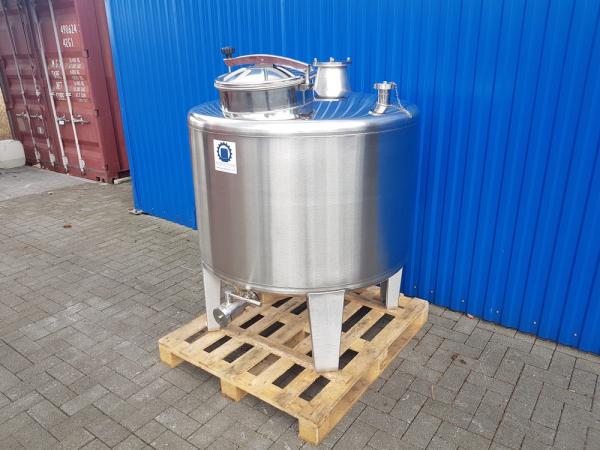

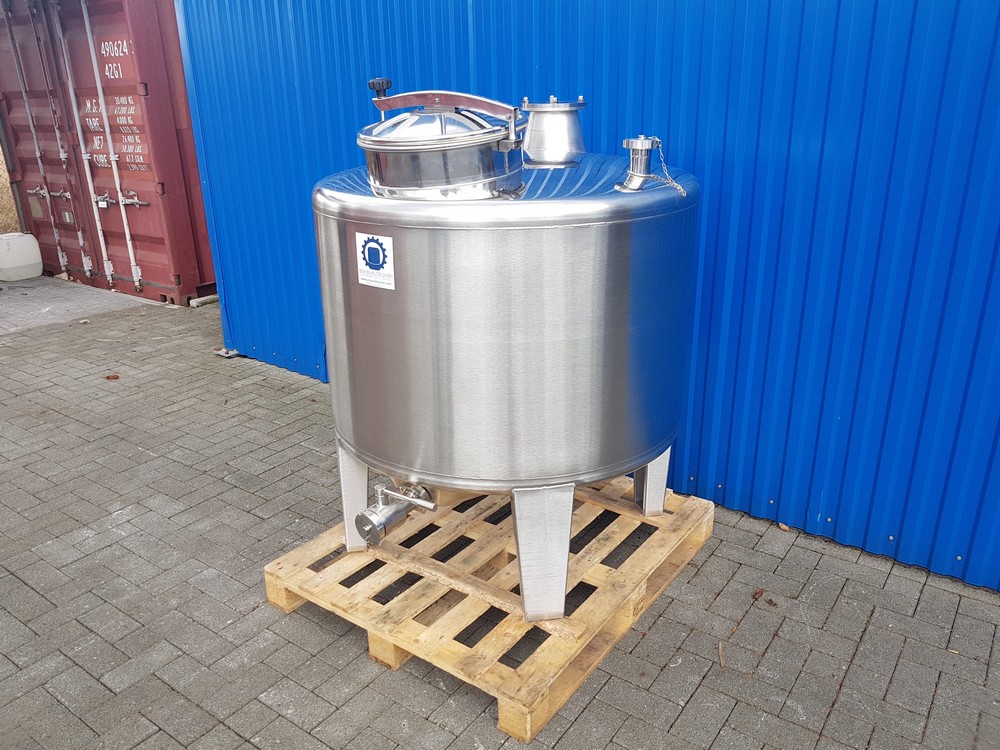

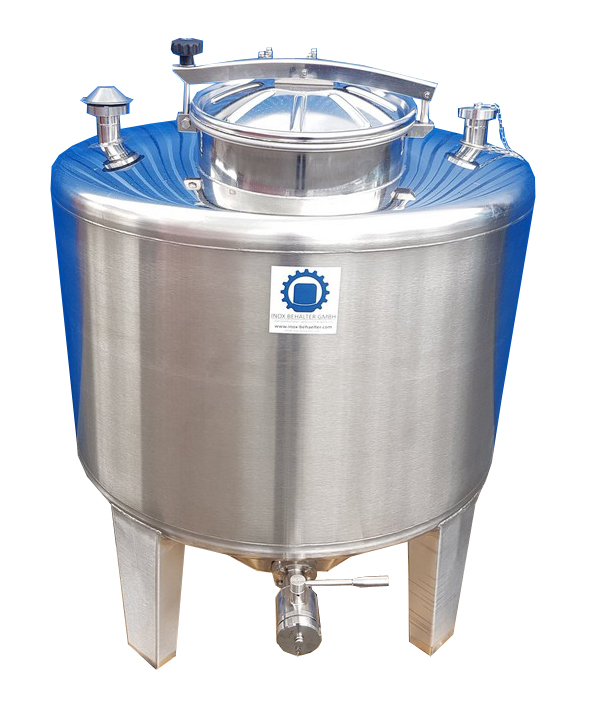

734L Stainless steel vessel

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	85°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm
Overall width	1084mm
Stand feet height	425mm

Item number	MTL750RW
Item type	Factory new stainless steel vessel with agitator mount

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI316

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304

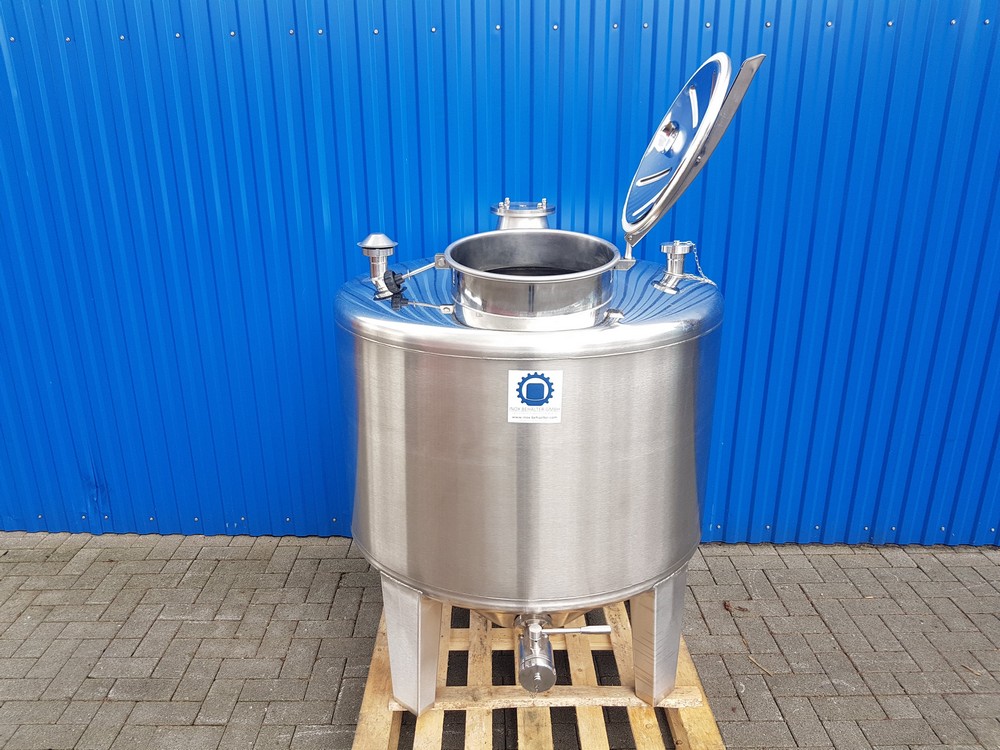

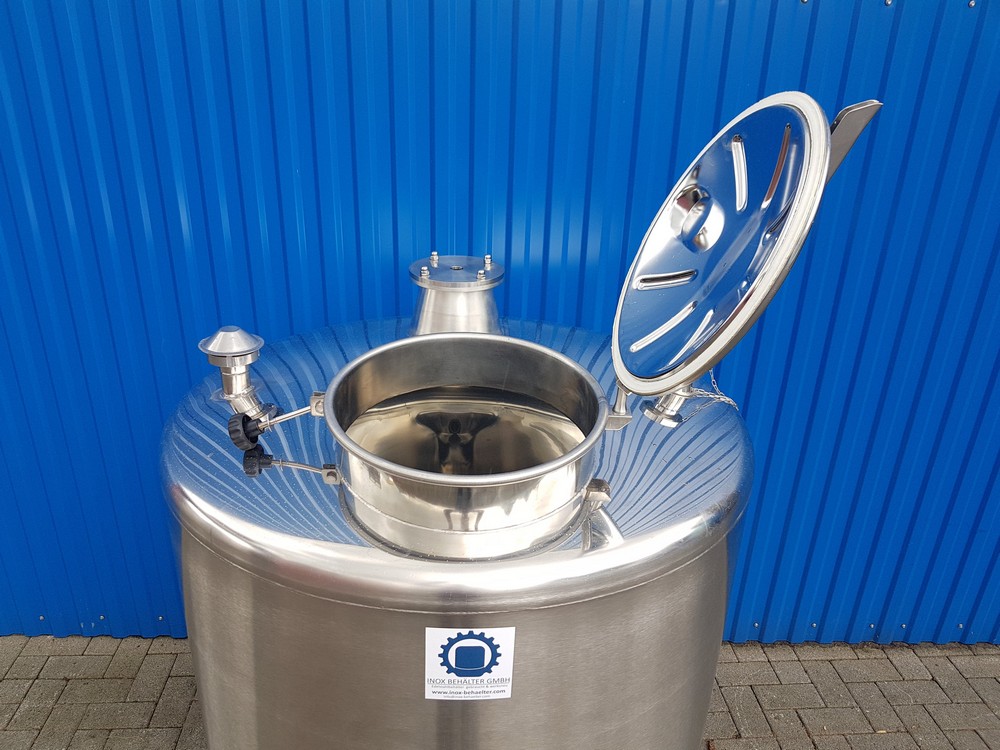

Extras	Dome cover Ø 400mm, aeration and venting valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Design	Single-jacket
Isolated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes

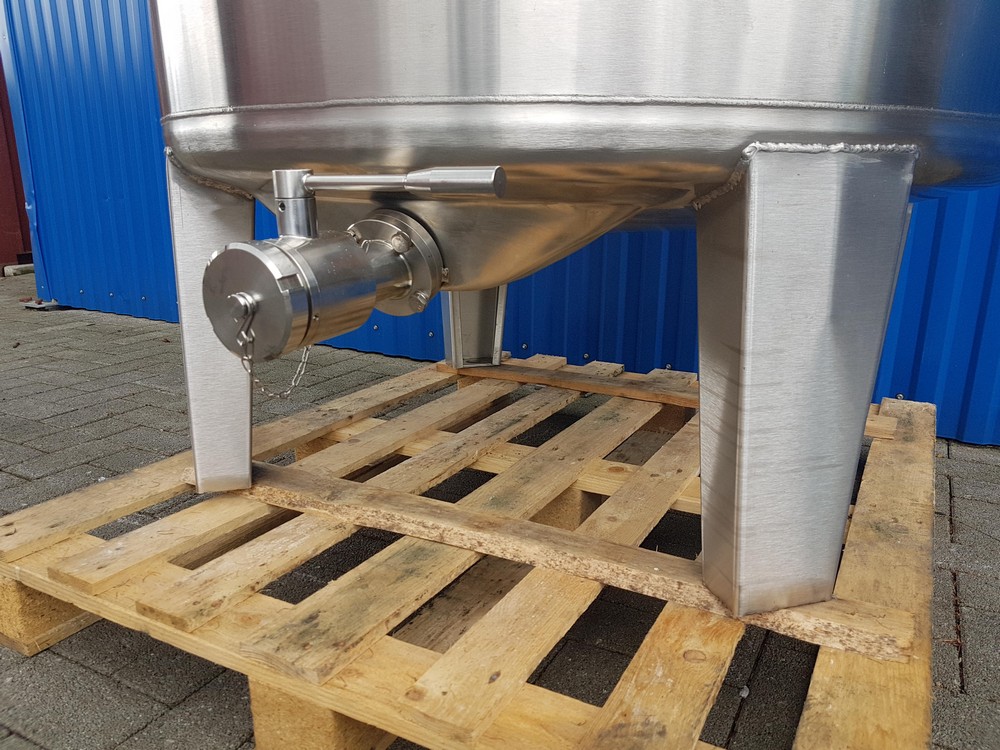

Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator	No
