Name: 734L stainless steel vessel with dissolver
SKU: MTL750RWD
Price: 4330.75 GBP
Availability: InStock

Main page » 734L stainless steel vessel with dissolver

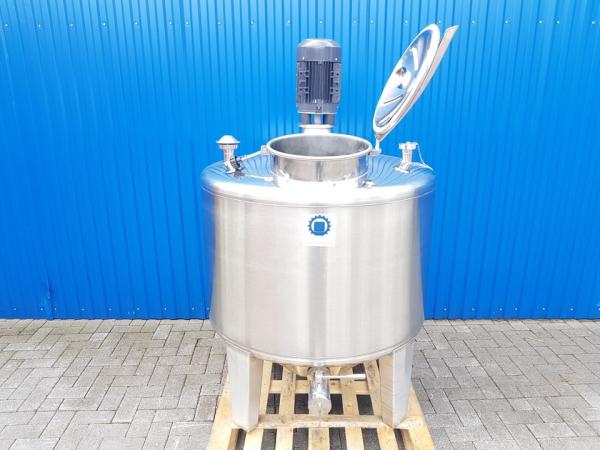

734L stainless steel vessel with dissolver

Overall description

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWD
Item type	Factory new stainless steel agitator tank with dissolver

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Single-jacket
Isolated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes

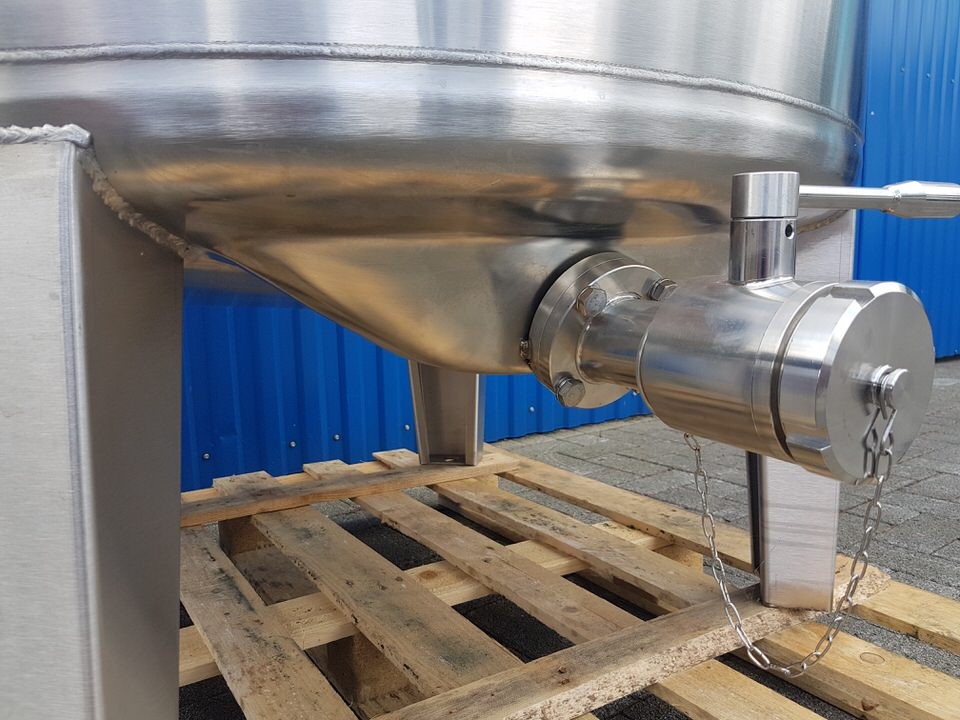

Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator
